QG, JG, FG Series Airflow Drying Equipment

Airflow Dryer, Airflow Dryer manufacturer, Airflow Drying equipment

Contact Us
Details Parameter Application

Airflow dryer is a large quantity of drying equipment,  Airflow drying equipment adopts the principle of instant drying, using the rapid movement of the heat-carrying air to drive the wet material, so that the wet material is suspended in the hot air, which strengthens the whole drying process and improves the rate of heat and mass transfer.

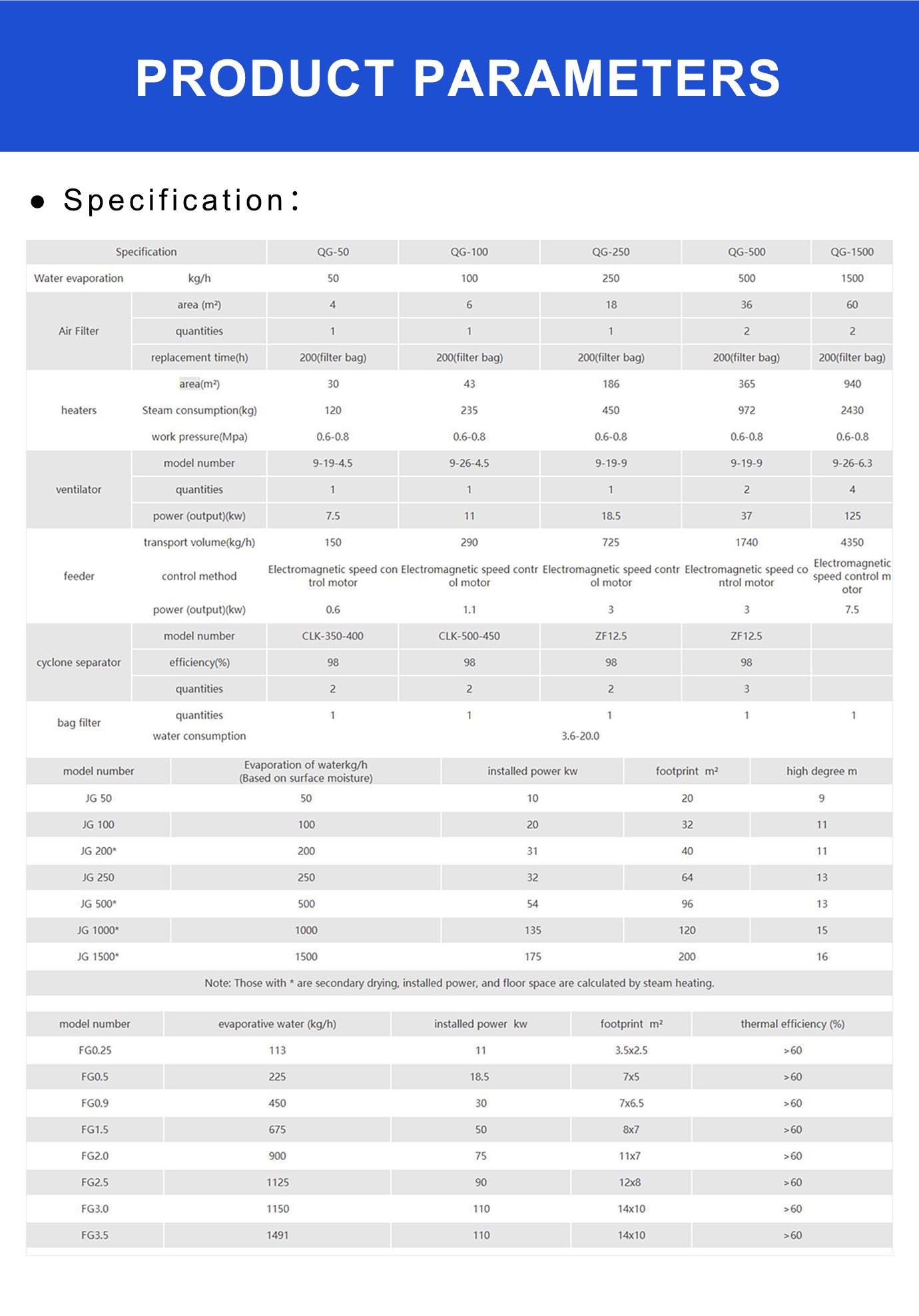

SpecificationQG-50QG-100QG-250QG-500QG-1500
Water evaporationkg/h501002505001500
Air Filterarea (m²)46183660
quantities
11122
replacement time(h)200(filter bag)200(filter bag)200(filter bag)200(filter bag)200(filter bag)
heatersarea(m²)3043186365940
Steam consumption(kg)1202354509722430
work pressure(Mpa)0.6-0.80.6-0.80.6-0.80.6-0.80.6-0.8
ventilatormodel number9-19-4.59-26-4.59-19-99-19-99-26-6.3
quantities
11124
power (output)(kw)7.51118.537125
feedertransport volume(kg/h)15029072517404350
control methodElectromagnetic speed control motorElectromagnetic speed control motorElectromagnetic speed control motorElectromagnetic speed control motorElectromagnetic speed control motor
power (output)(kw)0.61.1337.5
cyclone separatormodel numberCLK-350-400CLK-500-450ZF12.5ZF12.5
efficiency(%)98989898
quantities2223
bag filterquantities111 1
water consumption3.6-20.0


model numberEvaporation of waterkg/h
(Based on surface moisture)
installed power kwfootprint  m²high degree m
JG 505010209
JG 100100203211
JG 200*200314011
JG 250250326413
JG 500*500549613
JG 1000*100013512015
JG 1500*150017520016
Note: Those with * are secondary drying, installed power, and floor space are calculated by steam heating.


model number
evaporative water (kg/h)
installed power  kw
footprint  m²
thermal efficiency (%)
FG0.25
113
11
3.5x2.5
>60
FG0.5
225
18.5
7x5
>60
FG0.9
450
30
7x6.5
>60
FG1.5
675
50
8x7
>60
FG2.0
900
75
11x7
>60
FG2.5
1125
90
12x8
>60
FG3.0
1150
110
14x10
>60
FG3.5
1491
110
14x10
>60

QG Airflow Dryer, suitable for drying and dehumidifying pow.dery materials in pharmaceutical, chemical, food, building materials,plastics and other industries


Jiangsu Fanqun Drying Firm Equipment Factory Co., Ltd. products sell well all over the country, exported to the United States, Japan and Southeast Asian countries, welcomed by domestic and foreign users, the market reputation is excellent, but also China's drying equipment in the professional manufacturer of larger, more varieties of better quality of enterprises.



Complete scientific and quality system Professional technical team and superb technology Sophisticated production equipment

The company has large laser cutting machine, large water cutting machine, large plasma cutting machine, large automatic welding machine, non-destructive testing, mass spectrometer planer, bending machine, shearing machine and other high-end manufacturing and processing and inspection equipment.



Perfect after-sales service system

Pre-sales services :To provide you with project design, process design, suitable for your machine and equipment selection program development, according to your special needs, design and manufacture of products, for your training of technical operators.

Services during sale :Accompany you through the acceptance of the equipment and assist in the development of construction plans and detailed procedures.

After-sales service :The company sends technicians to the site to guide equipment installation commissioning site and training operators.
